Sturdy beam welded 2" diameter 17 gauge steel frame is field tested to withstand all but the most rigorous weather conditions
High grade steel frame goes through a 13 step Rhino Shield surface preparation process
Bonded with DuPont thermoset baked on powder-coated finish to eliminate any rust, weathering, chipping and peeling
Slip fit connectors and swedged tubing allow easy assembly
Wide based foot pads on every leg ensure a dependable sturdy base and easy access to secure anchor points
Patented Twist-Tite technology tensioning system secures taut to pipes ensuring longer life and a wrinkle free look
Easy-Slide Cross Rail system clamps tight to square up, smooth out, and lock down shelters
Fitted 9 oz. one piece full valance cover
Heat bonded, triple layer, polyethylene cover with enhanced weave to ensure its 100% waterproof
UV treated inside and out with added fade blockers, anti-aging, anti-fungal agents
White interior lining enhances illumination
Totally tear resistant reinforced rip-stop cover
Structure sets up quickly and in most cases requires no building permit
6 rib framework
8' 6" door height
1 year warranty
Includes:

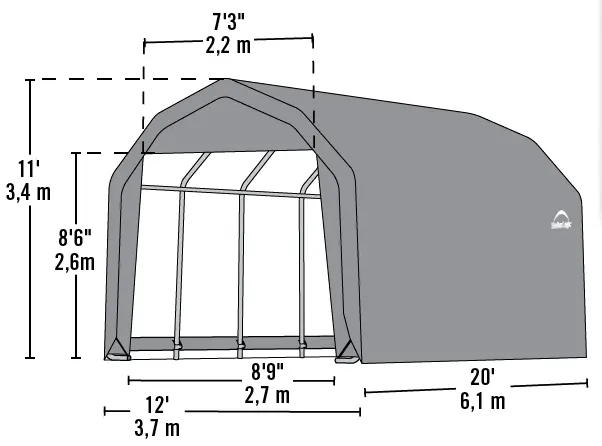

12' W x 20' L x 11' H steel frame
(1) 9 oz. fitted cover
(2) Double zippered door panels
(10) 30" Auger anchors
(2) Roll up door kits
(1) Vent kit
Steel foot plates
Easy step by step instructions
360 lb.- 4 box shipment
This package creates a 12' x 20' canopy that sets up quickly and usually doesn't require a building permit. The structure is made from beam welded 2" 17-gauge steel tubing that is tough enough to handle all but the most rigorous weather conditions. The frame is prepared with the Rhino Shield preparation and finished with a baked on powder coating that eliminates rust, weathering, peeling, or chipping. The frame members assemble using slip fit connectors and swedged tubing. The shelter has six ribs, and each of the legs has a wide based foot pad that creates stability and provides access to secure anchor points. The one piece cover is made of heat bonded, triple layer polyethylene that is 100% waterproof and resistant to fading, aging, and fungus. It has a white interior lining that enhances the natural illumination. The package includes the frame, cover, door panels, anchors, and complete instructions.
